The 2.5T GEOLIFT AC25SN Super Narrow Hand Pallet Truck is built for tight spaces and narrow pallets. With a slim fork design and strong construction, it offers smooth handling and reliable performance in confined or specialized working areas. Ideal for operations where standard pallet trucks can’t fit.
Load capacity
2500kg
Width
450mm
Fork Length
1150mm
Drive
Manual
Load capacity
2500kg
Width
450mm
Fork Length
1150mm
Drive
Manual
Geolift AC25SN Super Narrow Hand Pallet Truck 2.5 Ton
Original price was: RM1,553.00.RM1,000.00Current price is: RM1,000.00.
- Transport by Avertec Sdn Bhd
- Self Pick-up Available
Special Size Pallet Truck – Super Narrow
- Ergonomic cushioned handle with 3 function trigger for raise, lower and neutral operation.
- Optimised hydraulic system design for lifting heavy loads with minimum effort.
- Totally sealed pump unit with galvanized housing (impervious against air, water or dirt) incorporating an overload release valve.
- Solid & robust one – piece “C” section forks for greater strength and durability.
- Fully adjustable push rods to aid level running.

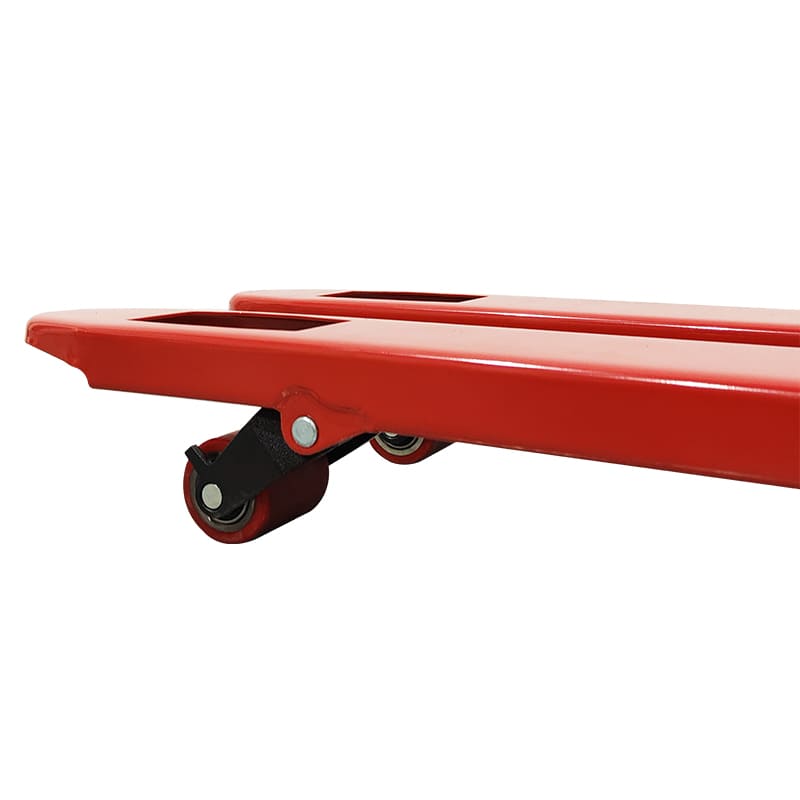

- Fork tip roller system for smooth transition in and out of pallets.
- The chromed bearing bushes and joints ensure quiet running properties and particularly long service life.
- Customized configurations and designs can be considered on request.
- Conforms to EN 1757-2 Standards.
Ultra-Compact 540mm Fork Width
The AC25SN's patented narrow chassis design enables effortless operation in aisles as narrow as 1.1 meters, significantly improving storage density compared to standard pallet trucks while maintaining full load capacity.
Full 2.5-Ton Heavy-Duty Performance
Engineered with a reinforced high-pressure hydraulic system, this space-saving powerhouse delivers uncompromised lifting power through a leak-proof precision pump and industrial-grade steel construction that withstands rigorous daily use.
Exceptional Maneuverability
Featuring centered steering wheels and a pivot-optimized tiller, the AC25SN achieves 30% tighter turning radii than conventional pallet trucks. The low-friction wheel bearings ensure smooth operation even with maximum loads in confined spaces.
Ergonomic Narrow-Space Design
The offset tiller handle provides optimal operator positioning in tight aisles, while the anti-vibration grip reduces fatigue during extended shifts. The compact wheel design minimizes floor contact while maintaining stability.

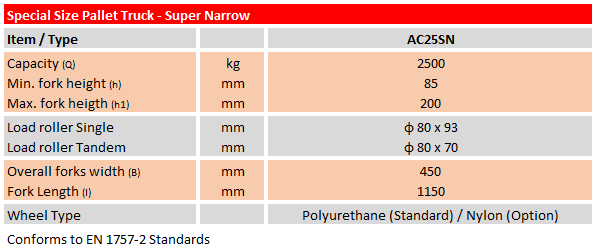

| Technical Parameters | ||
|---|---|---|
|
Model |
UOM |
AC25SN |
|
Load Capacity |
kg |
2500 |
|
Truck Width (W) |
mm |
450 |
|
Fork Length |
mm |
1150 |
|
Fork Width |
mm |
160 |
|
Working Height |
mm |
200 |
|
Wheel Type |
|
Polyurethane (PU) |
|
Drive |
|
Manual |
Ideal Application
Retail Backroom Operations
High-Density Warehousing
Manufacturing
