Load capacity
500kg
Feature 1
Open Pallet
Width
830mm
Feature 2
Fork Length
750mm
Lifting Height
1500mm
Load capacity
500kg
Width
830mm
Fork Length
750mm
Drive
Manual
Feature 1
Open Pallet
Feature 2

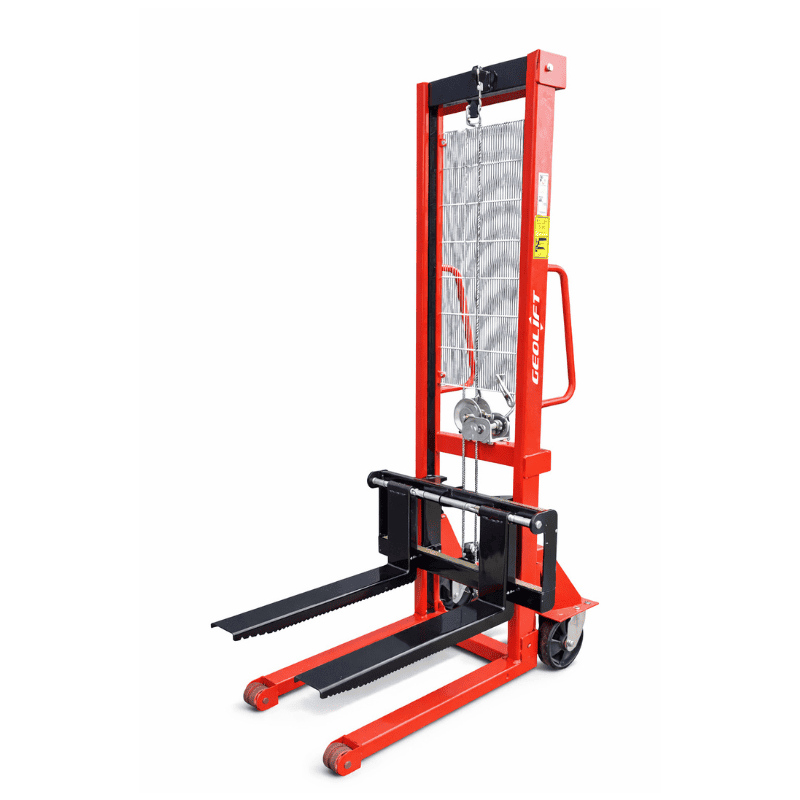

Geolift WS0515 Manual Winch Stacker
Affordable, no-power-needed lifting! The GeoLift WS0515 is a 500kgs manual winch stacker ideal for light-duty workshops, retail, and small warehouses. Its hand-cranked winch system provides simple, reliable lifting without electricity. Compact, lightweight, and perfect for occasional use.
Original price was: RM3,308.00.RM2,300.00Current price is: RM2,300.00.
- Transport by Avertec Sdn Bhd
- Self Pick-up Available
Heavy-Duty Manual Winch System
The WS0515 is equipped with a high-tensile manual winch mechanism featuring a reliable gear drive and safety pawl, providing secure and controlled lifting and lowering of loads up to 500 kg.
Robust Steel Construction
Built with a reinforced steel frame and sturdy lifting forks, this stacker offers exceptional durability and long-term reliability in demanding industrial environments.
Smooth Lifting Action
The precision-engineered winch drum and cable system ensures smooth vertical movement, allowing for accurate load positioning at various heights with minimal operator effort.
Excellent Maneuverability
Featuring heavy-duty casters with locking brakes, the stacker moves easily across floor surfaces and remains securely positioned during lifting operations.
Operator-Focused Design
The ergonomic winch handle provides comfortable operation, while the open-frame design maintains clear visibility during lifting and stacking tasks.
| Technical Parameters | |||
|---|---|---|---|
|
Model |
UOM |
WS0515 |
|
|
Load Capacity |
kg |
500
|
|
|
Operation |
|
Hand Winch
|
|
|
Min.Fork Height |
mm |
90
|
|
|
Max.Fork Height |
mm |
1500
|
|
|
Overall Mast Height |
mm |
2060
|
|
|
Size of Fork |
mm |
125 x 50
|
|
|
Length of Fork |
mm |
750
|
|
|
Fork Width |
mm |
260~800 (adjustable)
|
|
|
Overall Width |
mm |
830
|
|
|
Overall Length |
mm |
1320
|
|
|
Overall Height |
mm |
2060
|
|
|
Weight |
kg |
130
|
|
|
Wheel Type |
|
Polyurethane (PU)
|
|
|
Drive |
|
Manual
|
|
Ideal Application
Warehouse Storage
Retail Stockrooms
Workshop Operations
