Load capacity
1500kg
Feature 1
Open/Closed Pallet
Width
1320mm
Feature 2
Straddle leg
Fork Length
1150mm
Drive
Semi-Electric
Load capacity
1500kg
Width
1320mm
Fork Length
1150mm
Drive
Semi-Electric
Feature 1
Open/Closed Pallet
Feature 2
Straddle leg

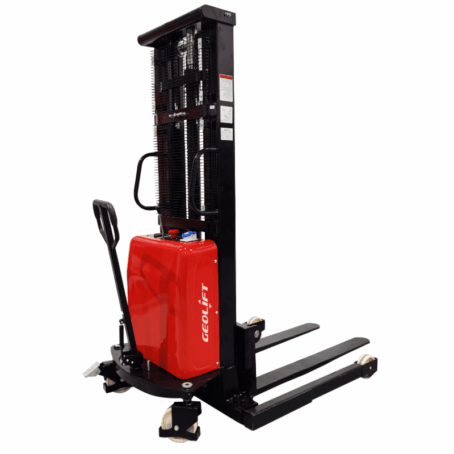

Geolift SPW1516 Semi-Electric Straddle Legs Stacker 1.5 Ton
The GeoLift SPW1516 is a robust semi-electric straddle stacker designed to handle demanding material handling tasks with ease. Featuring a substantial 1.5-ton load capacity, a practical 1.6-meter lift height, and durable nylon tyres, this stacker combines electric lifting efficiency with manual travel precision.
Original price was: RM9,288.00.RM6,880.00Current price is: RM6,880.00.
- Transport by Avertec Sdn Bhd
- Self Pick-up Available
Electric Lift System with Manual Travel
The SPW1516 features a reliable 12V electric lift mechanism for smooth, push-button height adjustment up to 1.6 meters. Manual steering ensures precise control and easy navigation in tight or congested work areas.
High-Capacity 1.5-Ton Load Handling
Engineered with a reinforced chassis and sturdy straddle legs, this stacker reliably lifts and transports heavy loads up to 1.5 tons, offering robust performance for industrial applications.
Versatile Straddle Leg Configuration
Adjustable straddle legs accommodate both palletized goods and bulky non-palletized items, providing exceptional flexibility across a wide range of material handling tasks.
Durable Nylon Tyres for Long-Term Reliability
Equipped with heavy-duty nylon tyres, the stacker ensures long-lasting performance, floor protection, and smooth rolling across various industrial surfaces.
Ergonomic Control and Enhanced Safety
An intuitive control handle integrates lift/lower functions with ergonomic grips, reducing operator fatigue. Safety elements include overload protection, automatic braking, and a stable straddle base.
| Technical Parameters | ||
|---|---|---|
|
Model |
UOM |
SPW1516 |
|
Capacity |
kg |
1500 |
|
Capacity at Highest Height |
kg |
1200 |
|
Load Centre |
mm |
600 |
|
Weight (Including battery) |
kg |
440 |
|
Working Height |
mm |
1600 |
|
Overall Fork Width |
mm |
220 – 850 |
|
Fork Dimensions |
mm |
H35 x W100 x L1150 |
|
Inner Width of Legs |
mm |
900 – 1320 |
|
Outer Width of Legs |
mm |
1100 – 1520 |
|
Lowered Mast Height |
mm |
2100 |
|
Extended Mast Height |
mm |
2100 |
|
Overall Length |
mm |
1855 |
|
Ground Clearance |
mm |
32 |
|
Turning Radius |
mm |
1492 |
|
Lifting Speed |
mm/s |
78 / 145 |
|
Lowering Speed |
mm/s |
127 / 111 |
|
Lifting Motor |
kw |
1.6 |
|
Battery |
Ah |
LA 12V 120 |
|
Type of Operation |
|
Pedestrian |
|
Parking Brakes |
|
Manual |
|
Wheel Type |
|
Nylon |
|
Drive |
|
Manual & Semi-Electric |
Ideal Application
Warehouses & Storage Facilities
Workshops & Production Areas
Retail & Logistics
