Load capacity
1500kg
Feature 1
Open/Closed Pallet
Width
1560mm
Feature 2
Straddle leg
Fork Length
1150mm
Lifting Height
3000mm
Load capacity
1500kg
Width
1560mm
Fork Length
1150mm
Drive
Manual
Feature 1
Open/Closed Pallet
Feature 2
Straddle leg

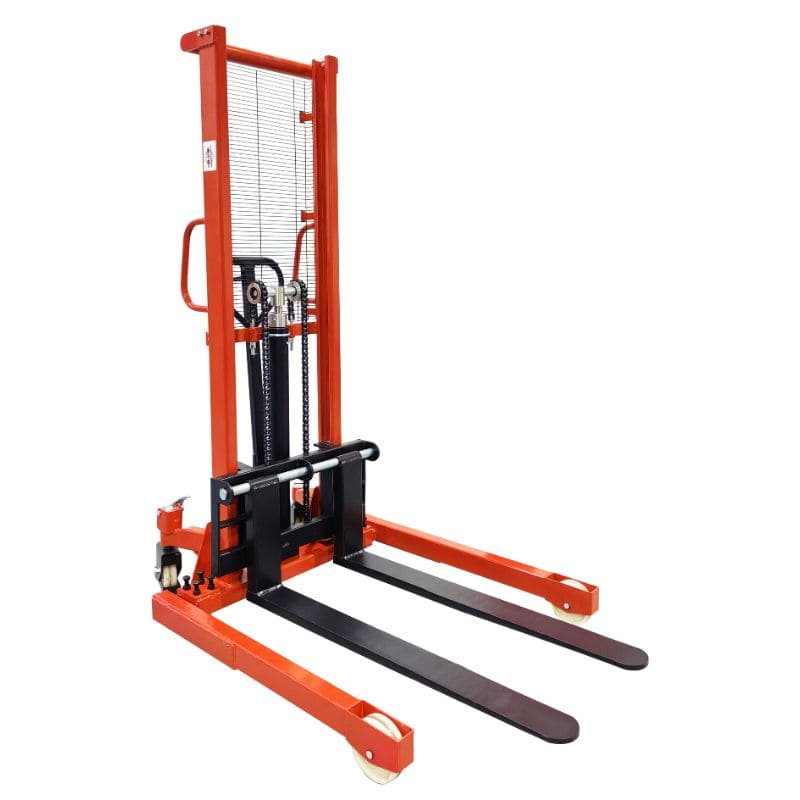

Geolift MSW1530 Manual Straddle Legs Stacker 1.5 Ton
Lift and maneuver up to 1.5 Ton loads with ease using the GEOLIFT MSW1530. Featuring a 3000mm lift height, it delivers exceptional control and durability in tight spaces.
Original price was: RM5,468.00.RM4,050.00Current price is: RM4,050.00.
- Transport by Avertec Sdn Bhd
- Self Pick-up Available
Exceptional 3-Meter Lift Height
The MSW1530 provides an industry-leading 3-meter maximum fork height, enabling access to the highest levels of standard racking systems and significantly improving vertical storage efficiency.
Heavy-Duty 1.5-Ton Load Capacity
Powered by a high-performance manual hydraulic system, this stacker handles substantial 1.5-ton loads with smooth, controlled lifting and precise positioning.
Versatile Straddle Leg Configuration
Adjustable straddle legs accommodate both palletized goods and various non-palletized items, offering exceptional flexibility for diverse material handling requirements.
Durable Nylon Tyres for Industrial Use
Equipped with high-strength nylon tyres, the stacker provides superior floor protection, extended service life, and reliable performance in demanding industrial conditions.
Reinforced Structural Engineering
Constructed with reinforced steel chassis, triple-braced mast, and wide-stance straddle base, ensuring maximum stability and safety at full extension under heavy loads.
| Technical Parameters | ||
|---|---|---|
|
Model |
UOM |
MSW1530 |
|
Capacity |
kg |
1500 |
|
Working Height |
mm |
3000 |
|
Min. Mast Height |
mm |
2180 |
|
Extended Mast Height |
mm |
3680 |
|
Size of Fork |
mm |
150 |
|
Fork Length |
mm |
1150 |
|
Inner Width of Forks |
mm |
10~500 |
|
Outer Width of Forks |
mm |
250~740 |
|
Inner Width of Legs |
mm |
960~1560 |
|
Outer Width of Legs |
mm |
1080~1680 |
|
Overall Length |
mm |
1700 |
|
Radius of gyration |
mm |
1650 |
|
Wheel Type |
|
Nylon |
|
Drive |
|
Manual |
Ideal Application
Warehousing & Storage
Manufacturing & Workshops
Logistics & Distribution
Related products
-
Sale!
![Ac25lp 800px x 800px view 2]()
Complete RangeGeolift AC20LP Low Profile Hand Pallet Truck 2.0 Ton (Height 51mm)
Original price was: RM2,211.00.RM1,550.00Current price is: RM1,550.00. Select options This product has multiple variants. The options may be chosen on the product page -
Sale!
![Geolift SLP10SS Stainless Steel Scissor Lift Pallet Truck 1.0 Ton]()
Complete RangeGeolift SLP10SS Stainless Steel Scissor Lift Pallet Truck 1.0 Ton
Original price was: RM11,772.00.RM8,720.00Current price is: RM8,720.00. Select options This product has multiple variants. The options may be chosen on the product page -
Sale!
![Geolift AC25SN Super Narrow Hand Pallet Truck 2.5 Ton]()

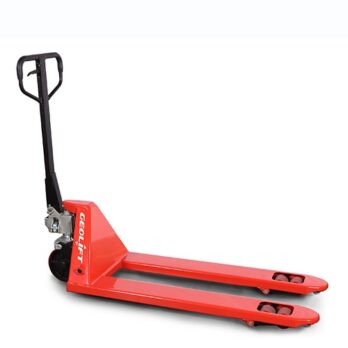

Complete RangeGeolift AC25SN Super Narrow Hand Pallet Truck 2.5 Ton
