Geolift MS1030 High Performance Manual Hydraulic Stacker 1-Ton
Original price was: RM4,280.00.RM3,170.00Current price is: RM3,170.00.
The GeoLift MS1030 is engineered to redefine manual material handling, combining 1-ton load capacity with an impressive lifting height of 3000mm. Designed for demanding warehouse, logistics, and industrial environments, this high-performance stacker enables access to elevated storage and work areas without the need for electrical power, delivering unparalleled reach, reliability, and operator efficiency.
High-Reach 3000mm Lift Capability
The MS1030 achieves an exceptional 3000mm fork height, providing superior access to elevated storage systems and enabling efficient use of vertical space without powered assistance.
Heavy-Duty Manual Hydraulic System
A precision-engineered hydraulic pump ensures smooth, controlled lifting and lowering of loads up to 1 ton, with a low-effort operation that reduces operator fatigue during repetitive tasks.
Reinforced Steel Construction
Constructed with high-tensile steel and a reinforced multi-stage mast, this stacker provides outstanding structural integrity and durability, even under full load at maximum extension.
Advanced Stability and Control
A wide wheelbase, heavy-duty outriggers, and large polyurethane wheels deliver exceptional stability on uneven surfaces and during high-level stacking operations.
Operator-Focused Ergonomics
Features an ergonomic pump handle with progressive action, intuitive positioning controls, and smooth-rolling casters for easy maneuvering in tight or congested workspaces.

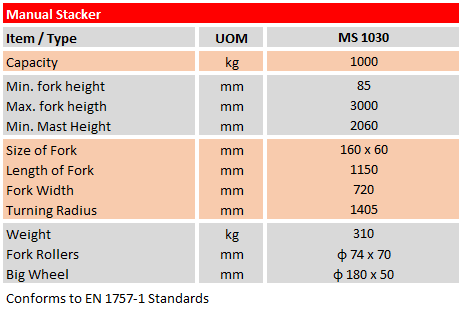

| Technical Parameters | |||
|---|---|---|---|
|
Model |
UOM |
MS1030
|
|
|
Load Capacity |
kg |
1000
|
|
|
Min.Fork Height |
mm |
85
|
|
|
Max.Fork Height |
mm |
3000
|
|
|
Mast Height |
mm |
2140
|
|
|
Extended Mast Height |
mm |
3640
|
|
|
Size of Fork |
mm |
160 x 60
|
|
|
Length of Fork |
mm |
1150
|
|
|
Fork Width |
mm |
330~740 (Adjustable)
|
|
|
Radius of gyration |
mm |
1405
|
|
|
Weight |
kg |
325
|
|
|
Load Wheel |
|
Nylon
|
|
|
Drive |
|
Manual
|
|
Ideal Application
High-Level Storage Warehouses
Production and Assembly Lines
Maintenance and Workshop Use
Related products
-
Sale!
![Ac25 800px x 800px view 1]()
Complete RangeGEOLIFT AC25 Standard Hand Pallet Truck 2.5 Ton
Price range: RM1,058.00 through RM1,158.00 Select options This product has multiple variants. The options may be chosen on the product page -
Sale!
![Ac25ss 800px x 800px view 3]()

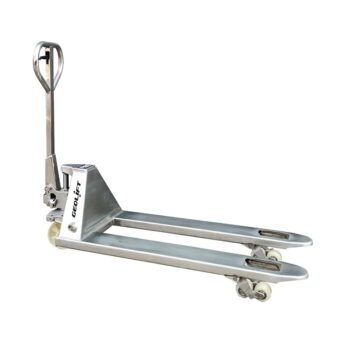

Complete RangeGeolift AC25SS Stainless Steel Hand Pallet Truck 2.5 Ton
Original price was: RM7,139.00.RM5,200.00Current price is: RM5,200.00. Select options This product has multiple variants. The options may be chosen on the product page -
Sale!
![Geolift eslp10, eslp15 electric scissor lift pallet truck]()
Complete RangeGeolift ESLP10 Electric Scissor Lift Pallet Truck 1.0 Ton
Original price was: RM6,872.00.RM5,090.00Current price is: RM5,090.00. Select options This product has multiple variants. The options may be chosen on the product page -
Sale!
![HP25 new look(1)]()

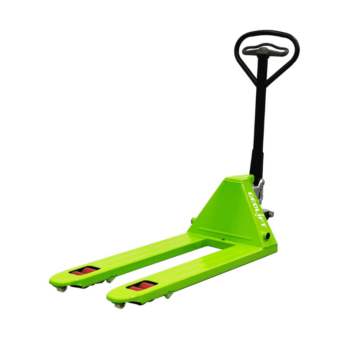

Complete RangeGeolift HP30 High Performance Hand Pallet Truck 3.0 Ton
Price range: RM1,400.00 through RM1,420.00 Select options This product has multiple variants. The options may be chosen on the product page -
Sale!
![Super Extra Length Hand Pallet Truck AC30SXL (2)]()

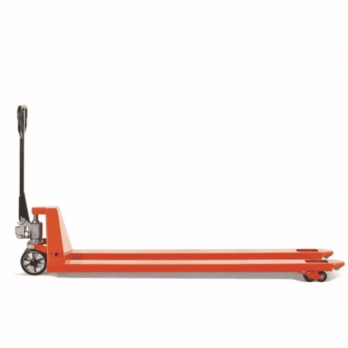

Complete RangeGeolift AC30XL Extra Length Hand Pallet Truck 3.0 Ton
