Load capacity
250kg
Feature 1
Width
2000mm
Feature 2
Fork Length
Lifting Height
6500mm
Load capacity
250kg
Width
2000mm
Fork Length
Drive
Manual
Feature 1
Feature 2

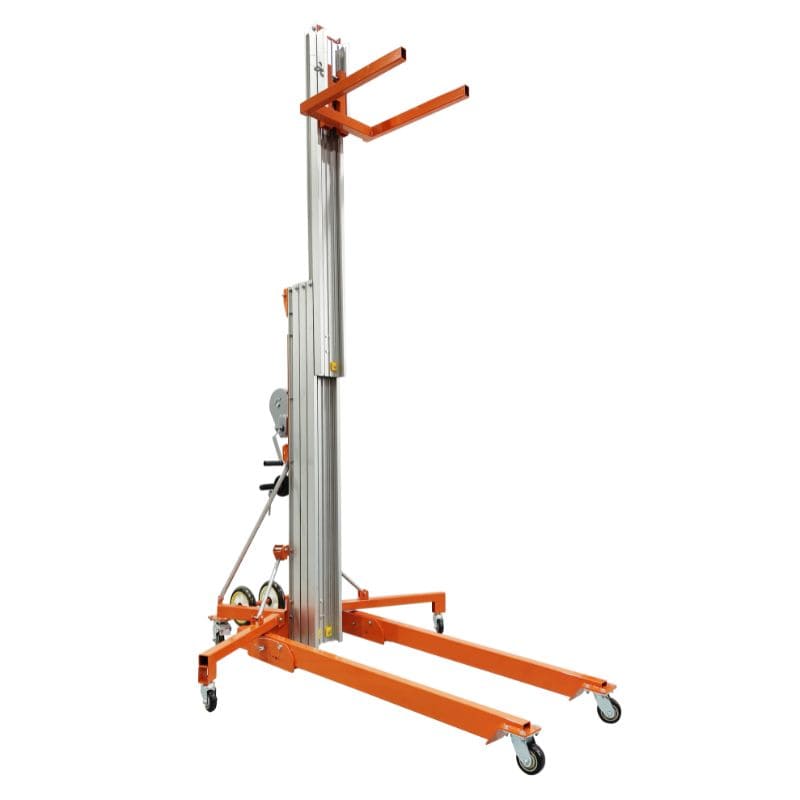

Geolift AML2565 Aluminium Material Lift Stacker 250kg
Need height + strength? The GeoLift AML2565 combines a 250kgs capacity with extended lift height, perfect for racking, mezzanines, and tall storage. Its aluminium build keeps it lightweight yet tough, making high-level access safer and easier.
Original price was: RM8,856.00.RM6,410.00Current price is: RM6,410.00.
- Transport by Avertec Sdn Bhd
- Self Pick-up Available
Record-Setting 6500mm Working Height
The AML2565 achieves an industry-leading 6.5-meter vertical reach, enabling access to the highest storage systems, industrial structures, and specialized maintenance areas that were previously inaccessible with standard material handling equipment.
Advanced Aluminum Alloy Framework
Utilizing military-grade aluminum alloys and truss-style engineering, this stacker maintains exceptional rigidity and stability at extreme heights while remaining lightweight enough for single-operator positioning.
Multi-Stage Precision Lift System
A custom-engineered multi-stage hydraulic cylinder provides smooth, controlled extension throughout the full 6500mm range, featuring progressive stability compensation for secure operation at maximum elevation.
Professional Stabilization System
The quad-point outrigger system with micro-leveling adjustment ensures absolute platform stability, while integrated load sensors provide real-time capacity monitoring and safety assurance.
Specialized Mobility Configuration
Oversized 300mm industrial-grade casters with precision steering and multiple braking positions enable controlled movement in high-ceiling environments while maintaining operational safety.
| Technical Parameters | |||
|---|---|---|---|
|
Model |
UOM |
AML2565
|
|
|
Load Capacity |
kg |
250kg – 400mm (load center)
200kg – 600mm (load center)
150kg – 800mm (load center)
100kg – 1000mm (load center)
|
|
|
Working Height |
mm |
6500
|
|
|
Mast Height (Stowed) |
mm |
2000
|
|
|
Length (Stowed) |
mm |
740
|
|
|
Length (Operating) |
mm |
2000
|
|
|
Width (Stowed) |
mm |
800
|
|
|
Width (Max) |
mm |
2000
|
|
|
Min. Lowered Height |
mm |
150
|
|
|
Ground Clearance |
mm |
50
|
|
|
Standard Forks |
mm |
L650 x W565
|
|
|
Weight |
kg |
184
|
|
|
Wheel Type |
|
Polyurethane (PU)
|
|
|
Drive |
|
Manual
|
|
Ideal Application
Distribution Center
Aircraft Hangar Operations
Industrial Maintenance
