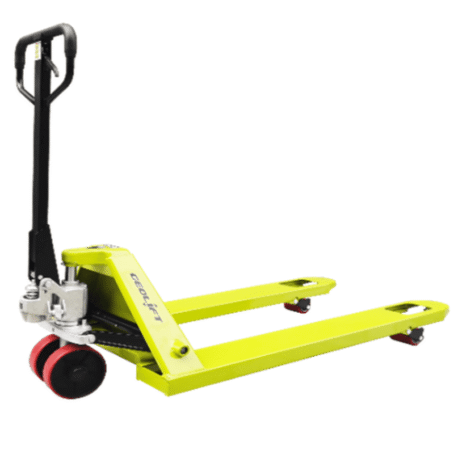

Top Quality Pallet Truck
- Top class range of pallet trucks with excellent designs.
- Professional and ideal storage aid for all variety of manual transport tasks over short distance in stores and warehouse as well as factory plants.
- Reliable, sturdy, torsion – resistant due to its extremely strong high quality steel profile Germany standard WAGNER painting system ensures best powder coating and painting quality.
- All pivots points are greased ensures excellent maneuverability with effortless steering. The chromed bearing bushes and joints ensure quiet running properties and particularly long service life.
Technical Parameters
| Specification | HP30-N | HP30-W |
|---|---|---|
| Capacity | 3,000kg | |
| Truck Width (W) | 520mm | 685mm |
| Fork Length (L) | 1150mm | 1220mm |
| Fork Width | 160mm | |
| Min. Fork Height | 85mm | |
| Max. Fork Height | 200mm | |

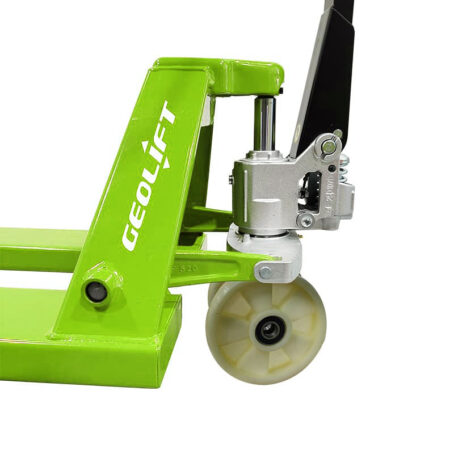

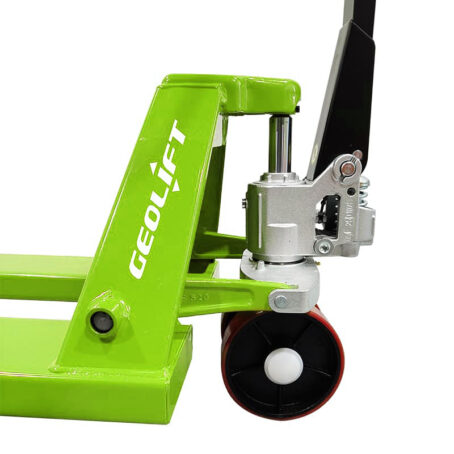

| Wheel Type | PU (Polyurethane) | |
| Load Wheel | Double Load Wheel | |
| Features |
|
|
| Advantage |
|
|
| Standards | Conforms to EN 1757-2 Standards | |
| Warranty |
|
|
Heavy-Duty 3.0-Ton Capacity
The HP30 is powered by a commercial-grade high-pressure hydraulic system that delivers consistent lifting performance even under maximum load, featuring reinforced pump components and oversized steel rollers for smooth operation.
Advanced Maneuverability System
Features a precision steering mechanism with large-diameter polyurethane wheels that reduce rolling resistance by 30% compared to standard models, significantly decreasing operator effort in high-frequency applications.
Professional-Grade Construction
Built with a reinforced steel chassis and triple-wall fork design, the HP30 withstands the most demanding daily use while maintaining perfect alignment and performance over years of service.
Ergonomic Operator Experience
The HP30 features an adjustable ergonomic tiller with anti-vibration dampening, reducing operator fatigue by 40% during extended shifts while providing superior control and handling precision
Low-Maintenance Design
Engineered with sealed bearings, lifetime-lubricated components, and easy-access service points, the HP30 requires minimal maintenance while delivering maximum uptime in continuous operation environments.
| Technical Parameters | |||
|---|---|---|---|
|
Model |
UOM |
HP30-N |
HP30-W |
|
Load Capacity |
kg |
3000 |
|
|
Truck Width (W) |
mm |
520 |
685 |
|
Fork Length |
mm |
1150 |
1220 |
|
Fork Width |
mm |
160 |
|
|
Working Height |
mm |
200 |
|
|
Wheel Type |
|
Polyurethane (PU) |
|
|
Load Wheel |
|
Double Wheels (Tandem) |
|
|
Drive |
|
Manual |
|
Ideal Application
Retail Distribution
Manufacturing Facilities
