Load capacity
500kg
Feature 1
Open/Closed Pallet
Width
920mm
Feature 2
N/A
Fork Length
1100mm
Lifting Height
1600mm
Load capacity
500kg
Width
920mm
Fork Length
1100mm
Drive
Semi-Electric
Feature 1
Open/Closed Pallet
Feature 2
N/A

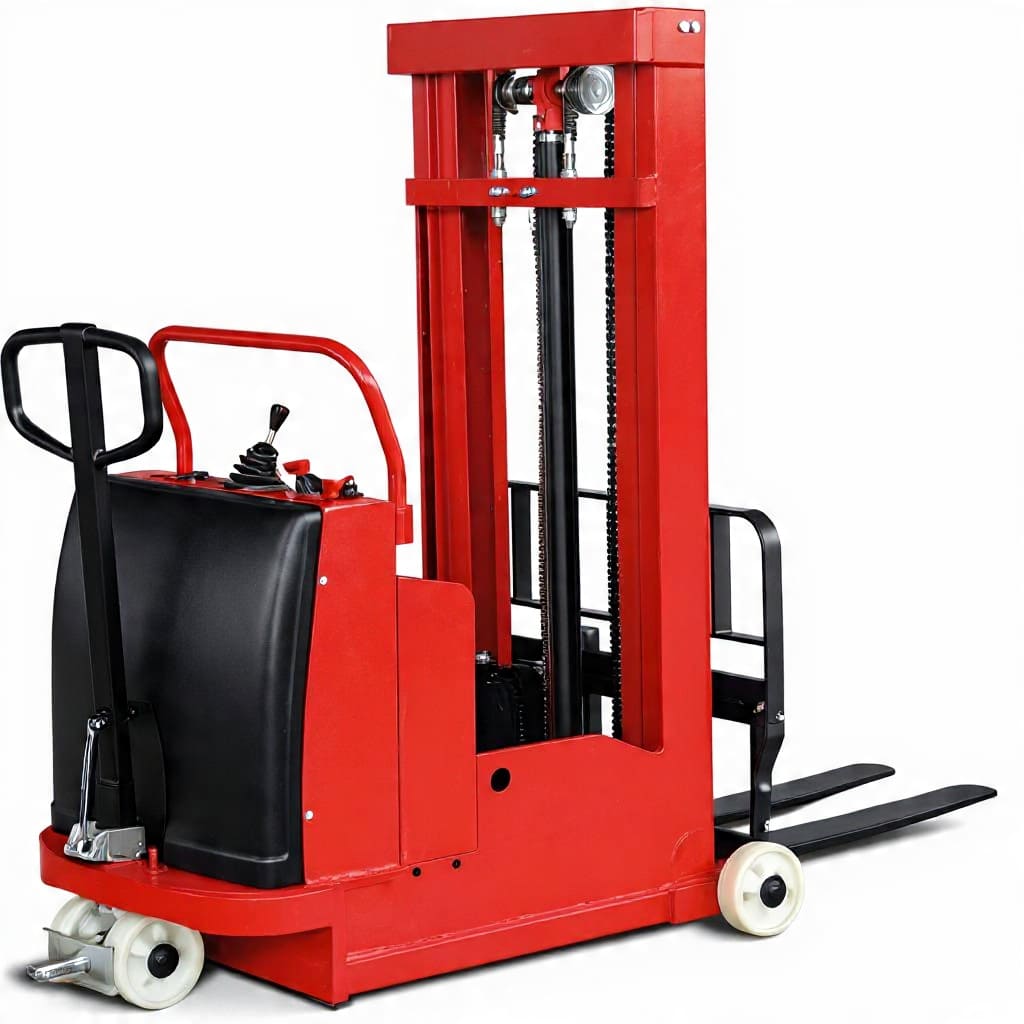

Geolift CBSPS0516 500kg Semi-Electric Counter Balance Stacker
The GeoLift CBSP0516 is a 500kg capacity semi-electric counter balance stacker with a 1.6m lifting height, designed for smooth and stable pallet movement in confined areas. Ideal for small warehouses, retail backrooms, and light industrial use. Features easy maneuverability and low maintenance
Original price was: RM15,606.00.RM11,360.00Current price is: RM11,360.00.
- Transport by Avertec Sdn Bhd
- Self Pick-up Available
Counterbalance Design for Superior Stability
The CBSP0516 incorporates an integrated counterbalance system that shifts weight to the rear wheels, allowing the stacker to safely lift and transport loads without the need for outriggers. This design provides exceptional stability, especially when handling off-center or uneven loads, making it ideal for narrow aisles and crowded workspaces.
Semi-Electric Operation with High-Efficiency Control
Powered by a reliable 12V battery system, this stacker features an electric lift mechanism for smooth, push-button vertical lifting. The manual travel function allows for precise steering and positioning, reducing operator fatigue while maintaining full control over movement. The control handle is ergonomically designed with intuitive lift/lower buttons and a horn for safe operation in busy areas.
Robust 500 kg Load Capacity with 1.6 Meter Lift Height
Engineered with a reinforced steel chassis and heavy-duty lift mast, the stacker handles loads up to 500 kg with ease, reaching a maximum fork height of 1.6 meters. This makes it perfect for accessing high shelving, racking systems, and mezzanine levels without the need for additional equipment.
Durable Nylon Tyres for Floor Protection and Longevity
Equipped with industrial-grade nylon tyres, the stacker offers excellent floor protection, smooth rolling performance, and resistance to wear in high-traffic environments. The non-marking tyres prevent scuffs and scratches, ensuring compliance with facility floor care standards.
Safety-Focused Engineering
The CBSP0516 includes key safety components such as overload protection, automatic braking, a low-battery indicator, and a sturdy steel toe guard. Its wide wheelbase and low center of gravity ensure secure lifting and transport, even at maximum height and capacity.
| Technical Parameters | ||
|---|---|---|
|
Model |
UOM |
CBSPS0516 |
|
Capacity |
kg |
500 |
|
Capacity at Highest Height |
kg |
500 |
|
Load Centre |
mm |
500 |
|
Min. Mast Height |
mm |
2080 |
|
Max. Mast Height |
mm |
2080 |
|
Working Height |
mm |
1600 |
|
Fork Length |
mm |
1100 |
|
Overall Fork Width |
mm |
330~640 (Adjustable) |
|
Overall Width |
mm |
920 |
|
Overall Length |
mm |
2360 |
|
Overall Height |
mm |
2080 |
|
Turning Radius |
mm |
1560 |
|
Charger |
V |
External Type AC240 Single Phase |
|
Lifting Motor |
kw |
1.6 |
|
Battery |
V/Ah |
LA 12/ 120 |
|
Wheel Type |
|
Nylon |
|
Drive |
|
Semi-Electric |
Ideal Application
Warehouse & Distribution Centers
Retail & Backroom Operations
Loading Docks & Staging Zones
