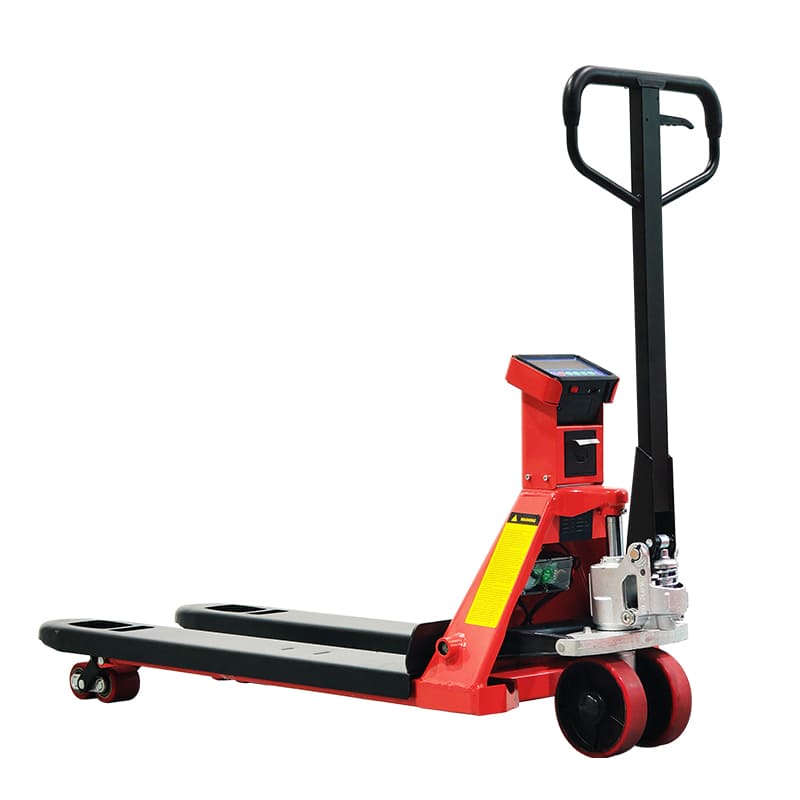

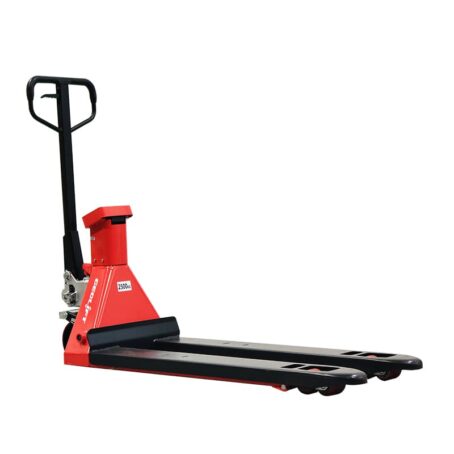

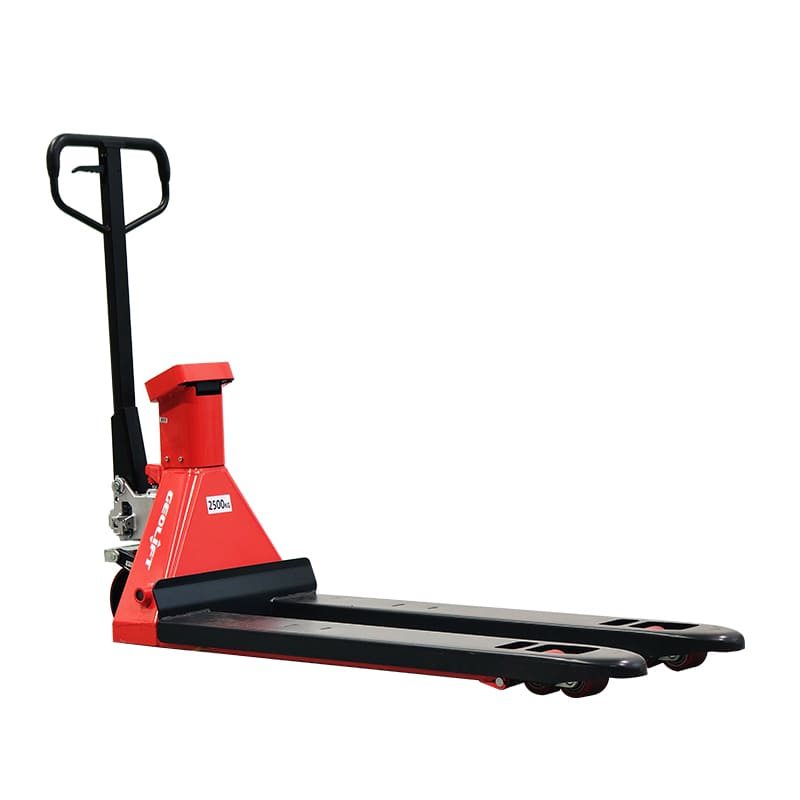

High-Accuracy Weighing System
The AC25WSP features precision load cells with 0.1% accuracy across its full 2.5-ton capacity, providing reliable weight measurements in kilograms or pounds. The system includes automatic tare functionality, overload protection, and dynamic weight stabilization for accurate readings during movement.

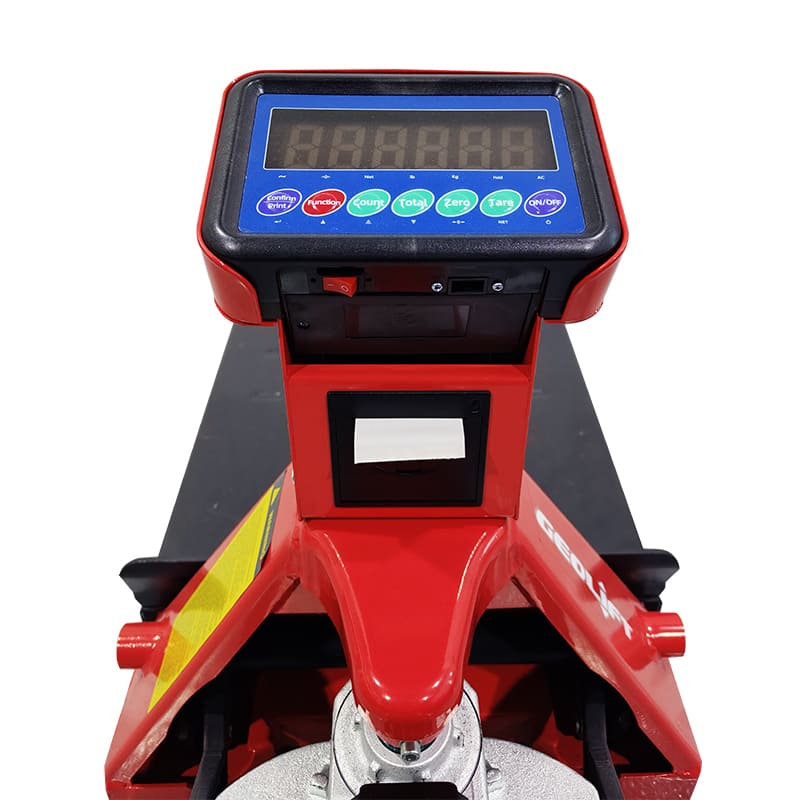

User-Friendly Digital Interface
The backlit LCD display shows real-time weight data, printer status, and system messages. Intuitive controls allow operators to toggle between units, tare weights, store data, and print documents with minimal training.
Heavy-Duty 2.5-Ton Performance

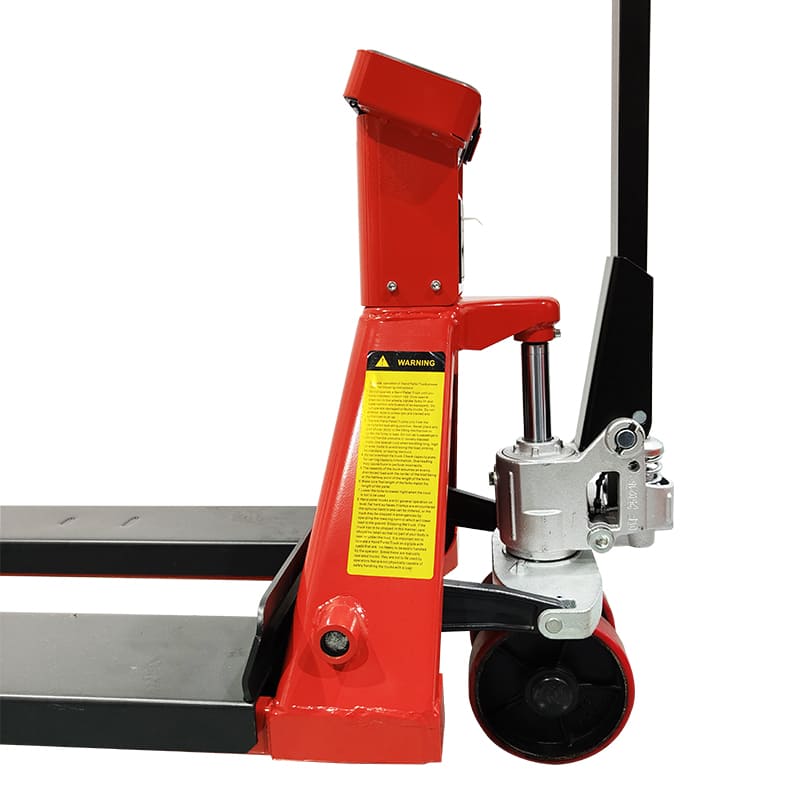

Engineered with a reinforced hydraulic system and robust construction, the AC25WSP maintains full lifting capacity while operating weighing and printing functions. The heavy-gauge steel frame and commercial-grade components ensure durability in demanding environments.
Integrated Thermal Printer
A built-in industrial-grade printer generates instant labels, tickets, and compliance documents directly from the pallet truck. Operators can print shipping labels, weight certificates, barcodes, or inventory tags without leaving the workflow.
Data Management and Connectivity
With onboard data storage for hundreds of weighings and customizable label templates, the system supports seamless integration with warehouse management software via USB, Bluetooth, or Wi-Fi options.
| Technical Parameters | |||
|---|---|---|---|
|
Model |
UOM |
AC25WSP-N |
AC25WSP-W |
|
Load Capacity |
kg |
2500 |
|
|
Truck Width (W) |
mm |
540 |
685 |
|
Fork Length |
mm |
1150 |
1220 |
|
Fork Width |
mm |
160 |
|
|
Working Height |
mm |
200 |
|
|
Accuracy |
kg |
+/- 1.0kg |
|
|
Battery |
Ah |
6V / 4Ah (Maintenance Free Battery) |
|
|
Working Temperature |
˚C |
-10 to 40 |
|
|
Printer |
|
Thermal Printer |
|
|

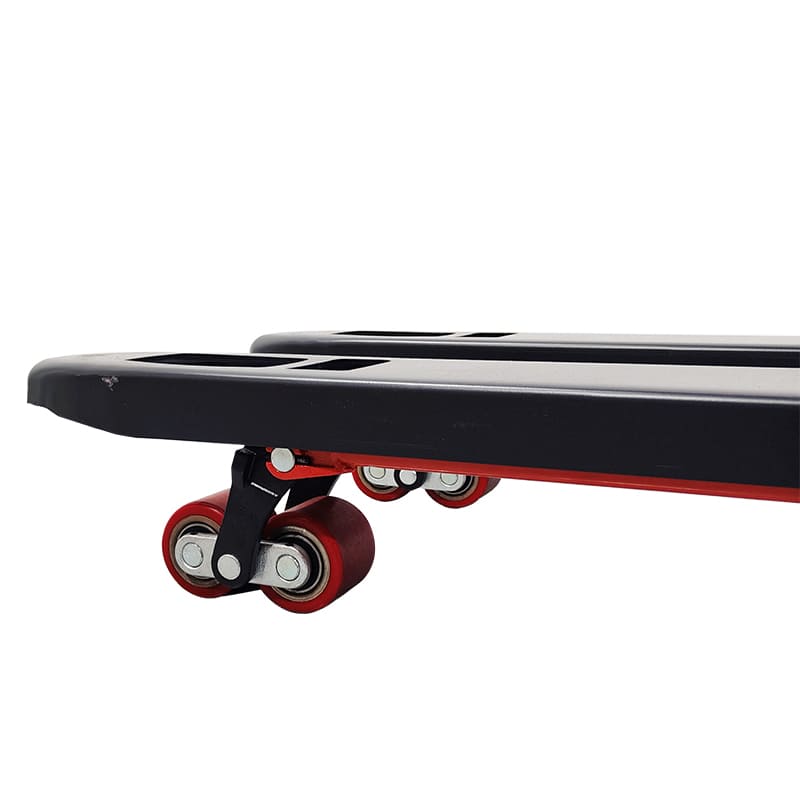

Load Wheel |
|
Double Wheels |
|
|
Wheel Type |
|
Polyurethane (PU) |
|
|
Drive |
|
Manual |
|
Ideal Applications
Inventory Management
Food Processing
